High Accuracy High Speed Flute Laminator Machine with Automatic Servo Correction Technology Model GFS1500

High Accuracy High Speed Flute Laminator Machine with Automatic Servo Correction Technology Model GFS1500​

Performance characteristics:

● Lead edge feeding system. No feeding pressure structure, doesn’t damage the corrugated and enhance the pressure resistance of the corrugated.

● Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.

● Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

● The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).

● Order memory function, one -click to transfer the previous order, convenient and fast.

● Video monitoring.

Parameters:

Structural features:
◆ Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

◆ Computerized high-speed fitting, up to 18,000 pieces per hour.

◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

◆ Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

◆ Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

◆ Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.



BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.

2. TOP SHEET FEEDING MECHANISM

Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.

3. ELECTRICAL SYSTEM

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

4. PRE-STACK PART

Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.

5. TRANSMISSION

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.

6.Left-right positioning system

7. POSITIONING SYSTEM & GLUE ROLLER

The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

8. TOUCH SCREEN OPERATION SYSTEM

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot

9. BIG SUCTION SYSTEM FOR BOTTOM PAPER

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.

10. AUTOMATIC LUBRICATION SYSTEM

Lubricate the bearing regularly to prolong the service life of the bearing

11. SHAFTLESS SERVO FEEDER(OPTIONAL)

This system is for option, more suitable for long size top sheets.

12. VIDEO MONITORING(OPTIONAL)

This option can monitor machine running, operator need not walking aroung the machine frequently.

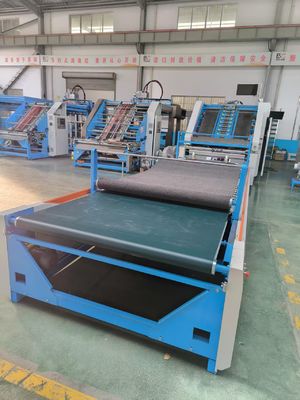

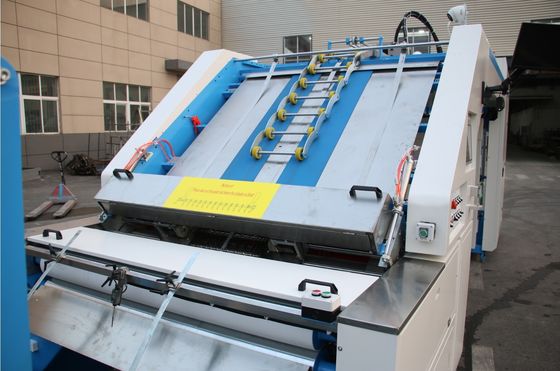

Machine Picture
