Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Imagem Grande :  Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Detalhes do produto:
Lugar de origem: Anhui
Marca: Innovo Bochen
Certificação: CE
Número do modelo: SFC-1500/1700/1900
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: 65000-85000USD
Detalhes da embalagem: Bolsa a vácuo
Tempo de entrega: 45 dias
Habilidade da fonte: 30 conjuntos por mês
Contato

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

descrição
Tipo de direção: Maneira elétrica Espessura de papel abaixo: Cartão 300gsm-10mm e BE FLUTE
Velocidade de trabalho da linha (m/min): 150-160 Preço a prazo FOB: 80000USD
Tamanho mínimo da folha: 1500: 40*45cm 1700: 45*45cm Tipo de laminação: papelão+corrugado+corrugado
Tamanho máximo do material: 1500*1500mm e 1700*1700mm Tamanho do rolo de cola: Rolante de anilox com diâmetro de 160 mm
Ajuste: Inteligente
Destacar:

Electrical Driving Sheet To Sheet Laminating Machine

,

300gsm-10mm Cardboard Corrugated Paper Laminator

,

B E FLUTE Cardboard Laminating Machine

5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Correction
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC1500 SFC1700 SFC1900 SFC2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 300gsm-10mm Corrugated board and cardboard
Max speed 150m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components

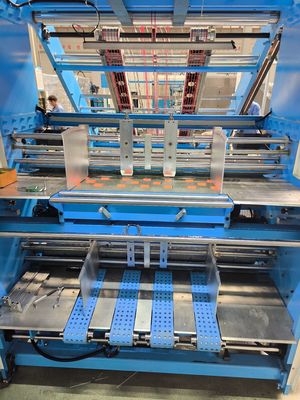

1. Bottom Paper Feeding
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 0

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

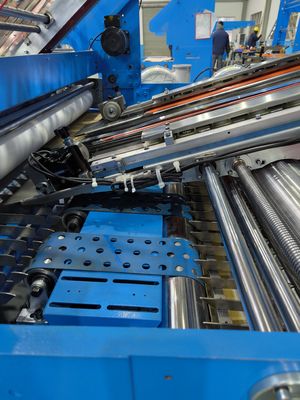

2. Top Sheet Feeding Mechanism
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 1 Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 2

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 3

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

4. Pre-Stack Part
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 4

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 5 Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 6

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

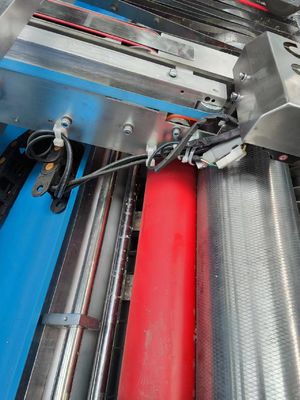

6. Positioning System & Glue Roller
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 7

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 8

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 9
