High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

Imagem Grande :  High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

Detalhes do produto:
Lugar de origem: China
Marca: INNOVO
Certificação: CE
Número do modelo: ZGFM-1500H/1700H
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: USD45000-65000
Detalhes da embalagem: Empacotamento da pálete e do filme do ferro
Tempo de entrega: 20-30 dias
Termos de pagamento: L/C,T/T
Habilidade da fonte: 30 conjuntos/mês
Contato

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine

descrição
Fornecimento de personalização: Como a procura de cliente Tempo de conclusão: Cerca de 20-25 dias úteis
Velocidade máxima de trabalho: 180 metros/minuto e 17.000 folhas por hora Espessura máxima de alimentação da folha inferior: Flauta de 8-10mm
Tamanho da placa min: 38*40cm e 40*40cm Precisão da vara: ± 1,0 mm
Tamanho máximo do papel: 170*170cm Poder: 22kW, 25kW, 27kW, 30kW
Destacar:

automatic flute laminator machine

,

high-speed corrugated laminator

,

professional automatic laminator machine

High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

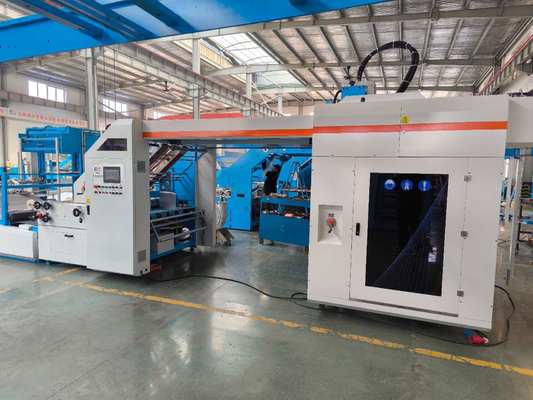

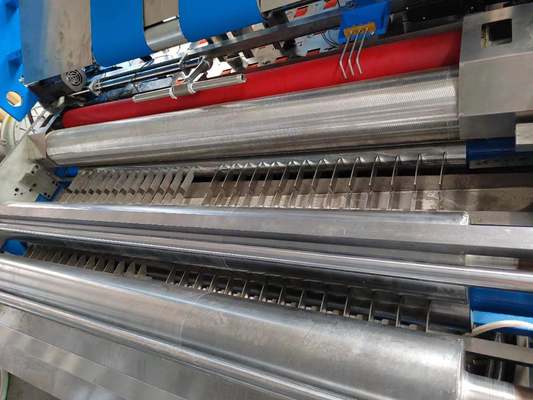

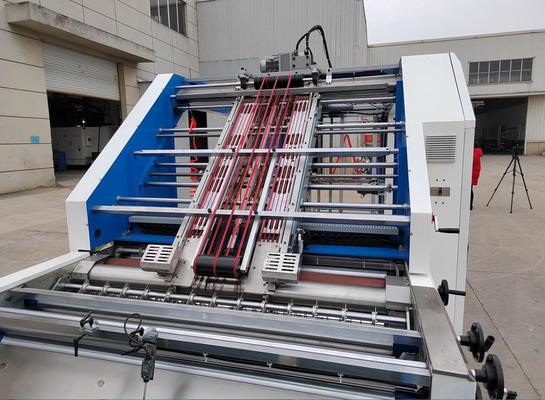

Product Images
High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 0 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 1 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 2 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 3 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 4 High-Speed Corrugated Lamination Made Easy with the Professional Automatic Flute Laminator Machine 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
