High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min

High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min
High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min
High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min

Imagem Grande :  High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min

Detalhes do produto:
Lugar de origem: China
Marca: INNOVO BC
Certificação: CE
Número do modelo: 1450/1650
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: 350000-450000USD
Detalhes da embalagem: Bolsa a vácuo
Tempo de entrega: 60-90 dias
Termos de pagamento: L/C,T/T
Habilidade da fonte: 1 SET/MONTH
Contato

High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min

descrição
Largura máxima: 1450/1650 mm Min Width: 450/500mm
Tamanho máximo do papel: 1450*1450mm/1650*1650mm Min Tamanho do papel: 450*450mm/500*500mm
Precisão de estratificação: ± 1 mm Velocidade máxima da linha: 150m/min
Precisão de corte cruzado: ± 1 mm
Destacar:

high-speed corrugated laminating machine

,

reel to sheet laminator with stacker

,

flute litho laminator 150m/min

High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min

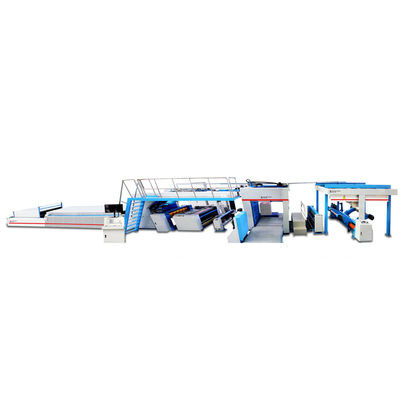

High-Speed Corrugated Box Packaging Solution (150m/min)
High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min 0
Technical Specifications
Model 1450 1650
Max width 1450mm 1650mm
Min width 450mm 500mm
Max paper size 1450*1450mm 1650*1650mm
Min paper size 450*450mm 500*500mm
Laminating accuracy ±1mm ±1mm
Max line speed 200m/min 200m/min
Cross cutting accuracy ±1mm ±1mm
Max collection speed 18000pcs/h (E flute)
16000pcs/h (B flute)		 18000pcs/h (E flute)
16000pcs/h (B flute)
Max collection height 1800mm (includes pallet) 1800mm (includes pallet)
Key Components & Features
1. Hydraulic Mill Roll Stand
  • Maximum paper roll diameter: 1500mm
  • Maximum paper roll weight: 4500kg
  • Robust design with full hydraulic drive for stable, reliable operation
  • Expansion chip prevents damage to paper core
  • Pneumatic multi-point brake control maintains constant paper roll tension
2. Automatic Splicer Machine
  • Maximum paper join width: 1450mm/1650mm
  • Maximum rolling paper diameter: 1500mm
  • Minimum resistance: 3n/mm
  • Tension control range: 10-100kgf
  • PLC control system for low failure rate and high machine stability
3. Corrugated Traction System
  • Swing roller automatically adjusts corrugated tension
  • Adjustable pressure roller gap for different corrugated types
  • Frequency reduction reducer drive
  • Point control for convenient paper threading
4. Underground/Ground Conveyor
  • Facilitates paper head transportation during threading
  • Belt running partial devices on both sides of dynamic roller
5. Bottom Sheet Aligner System
  • High-precision aligner ensures perfect fit accuracy
6. Corrugated Traction Glue Machine
  • Circulating glue system reduces glue loss and stabilizes adhesion
  • Compatible with white glue or starch glue
  • Stainless steel gluing roller with dynamic balance correction
7. Servo Sheeter
  • Synchronous servo cutting with color marking detection
  • Imported servo system and spiral blade
  • Precision positioning and tailoring

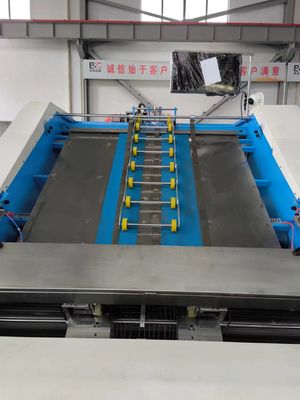

8. Automatic Flute Laminator
  • Maximum line speed: 200m/min
  • High-speed laminating without secondary corrugated positioning
  • Servo positioning ensures high accuracy
  • Non-stop feeding and pre-stacking
  • Intelligent glue volume and roller gap adjustment
  • Top sheet aligner system ensures side accuracy
  • Overlap feeding mode prevents paper jams

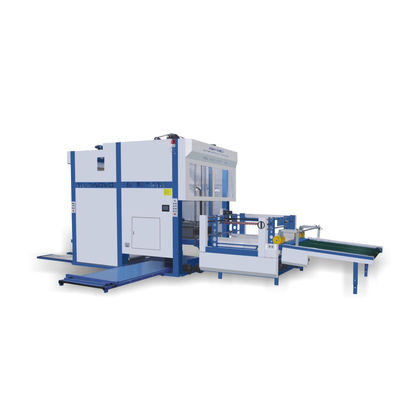

9. Automatic Flip Flop Stacker
  • Handles 10000-12000 sheets/hour high-speed lamination
  • Color surface remains completely contact-free and undamaged
  • Center-stacked cardboard for stable paper movement
  • Lateral movement of small stacks for convenient laminating and transport
  • Fully automatic stacking, flipping, and collection
  • Forward/reverse stacking prevents cardboard warping
  • Neat stacking improves product quality
  • Reduces labor requirements and intensity
  • Single-pallet intelligent multi-stack stacking saves space
  • Automatic unstacking and pallet placement
